YOUR UTILITY SOLUTIONS EXPERTS

Wagner-Smith Equipment Co.

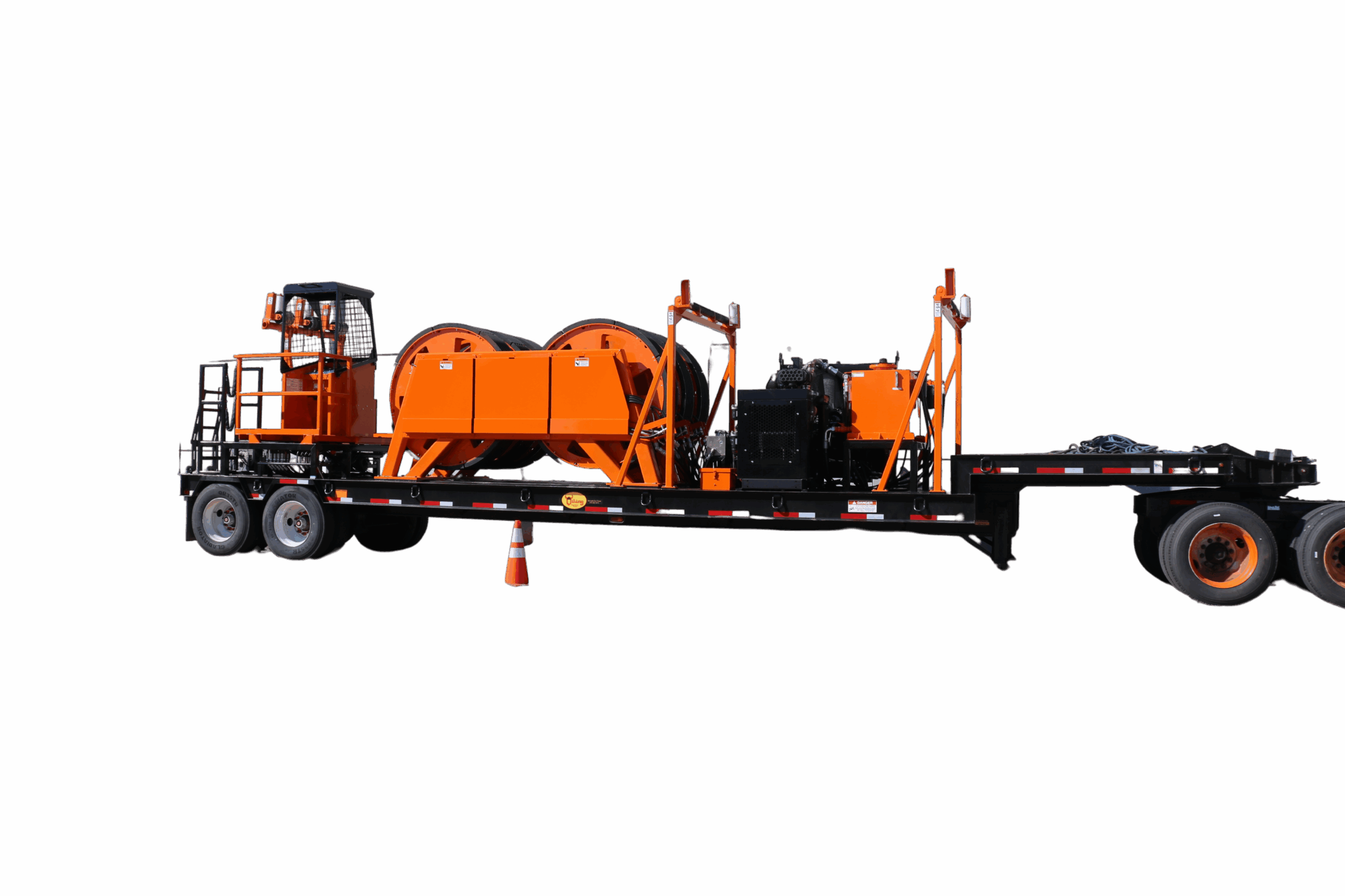

T-3BWT-10-72H-FT4 – 72″ Triple Conductor Hydrostatic Bullwheel Tensioner

Item Number: 45072-36R Category Search Terms , , , Brand:
- 72" Triple Conductor Hydrostatic Bullwheel Tensioner Image

rent me!

The Wagner‑Smith Company Model T‑3BWT‑10‑72H‑FT4 is a high‑performance hydrostatic bullwheel tensioner designed to efficiently string up to three conductors simultaneously. By transferring tension from the conductor reel to the bullwheel modules, this unit helps ensure smooth, controlled installations across both distribution and transmission projects.
  • Transfers tension from the conductor reel to dedicated bullwheel modules for smooth, controlled pulls
  • Suitable for both distribution and transmission applications

Performance & Capability

  • Accommodates conductors bent around a 72‑inch diameter (36‑inch radius) bullwheel
  • Delivers continuous line tension up to 10,000 lbs at speeds of 4 mph
  • Tension applied through a hydraulic motor and gearbox system for consistent performance
  • Precise tension control via an adjustable hydraulic relief valve

Operational Flexibility

  • Bullwheels can be operator‑driven for pay‑in or pay‑out when not actively tensioning
  • Independent operation of each bullwheel bundle for greater control and versatility

Advanced Features

  • Powered by a Tier 4 Final engine to meet current emissions standards
  • Equipped with a digital display providing real‑time line tension and pull speed for enhanced operator awareness
DOWNLOAD SPEC SHEET
DOWNLOAD Manual
